أنابيب سبائك الصلب

أنابيب من الفولاذ المقاوم للصدأ من سبائك النيكل والنحاس والنيكل ، أنابيب من سبائك النيكل والنحاس ، أنابيب نحاسية غير ملحومة
أنبوب/أنبوب من النحاس والنيكل

أنبوب/أنبوب من النحاس والنيكل


اسم المنتج: أنابيب الفولاذ المقاوم للصدأ المصنوعة من سبائك النيكل والنحاس والنيكل ، أنابيب سبائك النيكل والنحاس ، أنابيب النحاس غير الملحومة

القطر الخارجي: 8-2500 ، (3/ 8 "-100")

سمك الجدار: 0.3-150 (من)

الطول: 2000 ، و 2438 ، و 3000 ، و 5800 ، و 6000 ، و 12000 ، وما إلى ذلك

المعيار: ASTM B68/B88/B75/B111 ، JIS H3300 ، BS2871 ، EN1057 ، EN12449 ، إلخ

السطح: با ، 2b ، No.1 ، No.4 ، 4k ، Hl ، 8k

شهادة: ISO ، SGS ، BV

تقنية: المدرفلة على البارد المدرفلة على الساخن

درجة (Astm Uns):N04400 、 N05500 、 N4 、 N6 、 254smo 、 17-4ph 、 2507 、 904l 、 304 、 304l 、 320 、 316 、 316l 、 347h 、 31603 、 s254 、 360 s 、 904l 、 s32ti 、 2507 s31635 ، s31251 ، N08926 ، 2205 ، S32205 ، S31008 ، S30908 ، S32750 ، S32760 ، 630 إلخ

درجة (En): 1.4301 ، 1.4304 ، 1.4541 ، 1.4401 ، 1.4404 ، 1.4571 ، 1.4438 ، 1.4539 ، 1.4547 ، 1.4529 ، 1.4410 ، 1.4501 ، 1.4462 ، 1.4845 ، 1.4542 ، إلخ


  • أنبوب/أنبوب من النحاس والنيكل
  • أنبوب/أنبوب من النحاس والنيكل
  • أنبوب/أنبوب من النحاس والنيكل
  • أنبوب/أنبوب من النحاس والنيكل
  • الوصف
  • المواصفات
  • ستاندرد
  • عملية
  • التعبئة

الوصف

اسم المنتج: أنابيب الفولاذ المقاوم للصدأ من النيكل وسبائك النحاس والنيكل

القطر الخارجي: 8-2500 ، (3/ 8 "-100")

السماكة: 0.3-150 ، (من)

الطول: 2000 ، و 2438 ، و 3000 ، و 5800 ، و 6000 ، و 12000 ، وما إلى ذلك

معيار: Astm ، Aisi ، Jis ، Gb ، Din ، En

السطح: با ، 2b ، No.1 ، No.4 ، 4k ، Hl ، 8k

شهادة: Iso ، Sgs ، Bv

تقنية: المدرفلة على البارد المدرفلة على الساخن

درجة (Astm Uns):N04400 、 N05500 、 N4 、 N6 、 254smo 、 17-4ph 、 2507 、 904l 、 304 、 304l 、 320 、 316 、 316l 、 347h 、 31603 、 s254 、 360 s 、 904l 、 s32ti 、 2507 s31635 ، s31251 ، N08926 ، 2205 ، S32205 ، S31008 ، S30908 ، S32750 ، S32760 ، 630 إلخ

درجة (En): 1.4301 ، 1.4304 ، 1.4541 ، 1.4401 ، 1.4404 ، 1.4571 ، 1.4438 ، 1.4539 ، 1.4547 ، 1.4529 ، 1.4410 ، 1.4501 ، 1.4462 ، 1.4845 ، 1.4542 ، إلخ

سبائك النحاس والنيكل

أنابيب النحاس والنيكل غير الملحومة 70-30
أنابيب غير ملحومة من النيكل cubro 70-30 ، أنابيب غير ملحومة من Uns C71500 ، أنابيب غير ملحومة من Din 2.0882

أنابيب غير ملحومة من النيكل والنحاس 70-30
Cu-Ni 70-30 أنبوب غير ملحوم ، Cuni Uns C71500 أنبوب غير ملحوم ، Din 2.0882 أنابيب غير ملحومة

أنابيب ملحومة من النيكل والنحاس 70-30
مورد أنابيب ملحومة من النيكل cubro 70-30 ، أنابيب ملحومة Uns C71500 ، أنابيب ملحومة Cu-Ni Din 2.0882

أنابيب ملحومة من النيكل والنحاس 70-30
أنبوب ملحوم 70-30 Cuni ، أنبوب ملحوم Uns C71500 ، أنبوب ملحوم Asme Sb111 من النيكل والنحاس 70-30

أنابيب النحاس والنيكل 70-30 Erw
مورد أنابيب النيكل cubro 70-30 Erw ، سبائك Cuni Uns C71500 أنابيب Erw ، Cu-Ni Din 2.0882 Erw Pipe

أنابيب النيكل والنحاس 70-30 Erw
Uns C71500 أنبوب Erw ، Din 2.0882 أنابيب Erw ، Astm B111 cubro نيكل 70-30 أنابيب Erw ، Cu-Ni 70-30 أنابيب Erw

أنابيب النيكل cubro 90-10 للمبادلات الحرارية والمكثفات

أنابيب النيكل cubro 90-10 لصناعة السيارات أنابيب النحاس والنيكل 90-10

أنابيب غير ملحومة من النيكل cubro 90-10 ، أنابيب غير ملحومة من Uns C70600 ، أنابيب Din 2.0872 غير ملحومة

أنابيب النحاس والنيكل 90-10 غير الملحومة
Cu-Ni 90-10 أنبوب غير ملحوم ، Cuni Uns C70600 أنبوب غير ملحوم ، Din 2.0872 أنابيب غير ملحومة

أنابيب ملحومة من النيكل والنحاس 90-10
مورد أنابيب ملحومة من النيكل 90-10 ، أنابيب ملحومة Uns C70600 ، أنابيب ملحومة Cu-Ni Din 2.0872

النيكل والنحاس 90-10 أنابيب ملحومة
90-10 أنبوب ملحوم Cuni ، أنبوب ملحوم Uns C70600 ، أنبوب ملحوم Asme Sb111 من النحاس والنيكل 90-10

أنابيب النحاس والنيكل 90\ 10 Erw
مورد أنابيب النيكل 90-10 Erw من cubro ، أنابيب Cuni السبائك Uns C70600 Erw ، أنابيب Cu-Ni Din 2.0872 Erw

أنابيب النحاس والنيكل 90-10 Erw
Uns C70600 أنبوب Erw ، Din 2.0872 أنبوب Erw ، Astm B111 Cupro نيكل 90-10 أنابيب Erw ، Cu-Ni 90-10 أنابيب Erw


المواصفات

الانتقال إلى أنابيب النحاس والنيكل

وقد ثبت أن النحاس منذ الأيام الأولى يتمتع بالعديد من السمات الجيدة. كان من السهل الانحناء وكان
مقاومة عالية جدا للتآكل ، ولكن كان هناك قلق بشأن انخفاض قوة التآكل والتعب. عندما cubro
تم تقديم النيكل ، وعرض مقاومة التآكل مماثلة للنحاس ، وقوة عامة أعلى وأفضل
قوة التعب.


خصائص أنابيب فرامل النحاس والنيكل

تحتوي سبيكة النحاس والنيكل المستخدمة لأنابيب الفرامل عادة على 10 ٪ نيكل ، مع الحديد والمنجستات
إضافات بنسبة 1.4 ٪ و 0.8 ٪ على التوالي. المنتج يتوافق مع astm b466 (المجتمع الأمريكية للاختبار
والمواد) ، التي تحدد الأبعاد وقوة الشد وقوة الإنتاجية. القابلية للتشكيل والداخلية
النظافة تتوافق مع المواصفات sae j527 و astm a254 و smmt c5b (مجتمع المحرك
المصنعين والتجار). أيضا ، سبيكة يلبي متطلبات احتواء الضغط ، تلفيق
ومقاومة التآكل لـ iso 4038 (منظمة المعايير الدولية) و sae j1047.


Cupronickel أو النحاس والنيكل أو "cupernickel" عبارة عن سبيكة من النحاس تحتوي على النيكل وتعزيزه
العناصر ، مثل الحديد والمنجنز. Cupronickel مقاوم للغاية للتآكل في مياه البحر ، لأنه
يتم تعديل إمكانات القطب لتكون محايدة فيما يتعلق بمياه البحر. بسبب هذا ، يتم استخدامه للأنابيب والحرارة
المبادلات والمكثفات في أنظمة مياه البحر ، وكذلك الأجهزة البحرية ، وأحيانًا المراوح ،
أعمدة كرنك وقوارب صيد وقوارب عمل أخرى.


Cupronickel الأخرى المسجلة باسم الأسماء التجارية هي alpaka أو alpacca (علامة تجارية مسجلة) ، و minargentan ، و
اسم المصطلح الفرنسي cuivre blarch. أحيانا ، يشار إلى cupronickel أيضا باسم "الفضة الفندق" ، plata alemana
(إسبانية لـ "الفضة الألمانية") ، "الفضة الألمانية" و "الفضة الصينية".


يُطلق عليها أحيانًا cubro-nickels ، توجد مجموعة من سبائك النيكل والنحاس المختلفة التي تمتلك أنواع مختلفة
الخصائص وبالتالي مناسبة لمجموعة من التطبيقات المختلفة. بعض سبائك النحاس والنيكل المعروفة
تشمل:
النحاس مع النيكل 10 ٪
النحاس مع النيكل 30 ٪
النحاس مع 25 ٪ النيكل مع 0.05-0.4 ٪ من النيكل
النحاس مع النيكل 45 ٪ (المعروف أيضا باسم كونستانتان)

ستاندرد

Chemical Composition of Copper Nickel 70/30 Pipes & Tubes

Grade

Cu

Mn

Pb

Ni

Fe

Zn

Cu-Ni 70-30

65.0 min

1 max

.05 max

29-33

0.4-1.0

1 max


Mechanical Properties of Cu-Ni 70/30 Pipes and Tubing

Properties

Metric

Imperial

Tensile strength, ultimate

372-517 MPa

54000-75000 psi

Tensile strength, yield (depending on temper)

88.0-483 MPa

12800-70100 psi

Elongation at break (in 381 mm)

45.0%

45.0%

Charpy impact

107 J

78.9 ft-lb

Machinability (UNS C36000 (free-cutting brass) = 100%)

20%

20%

Shear modulus

57.0 GPa

8270 ksi

Poisson's ratio

0.34

0.34

Elastic modulus

150 GPa

21800 ksi


Physical Properties of Cupro Nickel 70/30 Pipes & Tubes

Properties

Metric

Imperial

Density

8.94 g/cm3

0.323 lb/in3

Melting point

2140°F

1171°C


Chemical Composition of Copper Nickel 90/10 Pipes & Tubes

Grade

Cu

Mn

Pb

Ni

Fe

Zn

Cu-Ni 90-10

88.6 min

1.0 max

.05 max

9-11 max

1.8 max

1 max


Mechanical Properties of Cu-Ni 90/10 Pipes and Tubing

Properties

Metric

Imperial

Tensile strength, ultimate

303-414 MPa

43900-60000 psi

Tensile strength, yield (depending on temper)

110-393 MPa

16000-57000 psi

Elongation at break (in 254 mm)

42.00%

42.00%

Machinability (UNS C36000 (free-cutting brass) = 100%)

20%

20%

Shear modulus

52.0 GPa

7540 ksi

Poisson's ratio

0.34

0.34

Elastic modulus

140 GPa

20300 ksi


Physical Properties of Cupro Nickel 90/10 Pipes & Tubes

Properties

Metric

Imperial

Density

8.94 g/cm3

0.323 lb/in3


All copper nickel alloys consist of only one phase as the copper nickel binary system exhibits complete solid solubility

Applications of Copper Nickel alloys:

Sea Water Condensor Systems And Desalination Plants
Due to the good resistance to sea water corrosion, the copper nickel alloy Copper 90/10 and copper nickel alloy Copper 70/30 are employed for sea water condenser systems and in desalination plants, as well as pipe work in chemical plants.

Automotive Applications
Due to the fact that the copper nickel alloy Copper 90/10 requires no surface protection and hence gives extra safety, this copper nickel alloy is being increasingly employed for brake and hydraulic suspension systems and cooling systems in cars and commercial vehicles.

Marine Applications
The good resistance to biofouling and sea water corrosion resistance of the copper nickel alloys, Copper 90/10 and Copper 70/30 alloys have lead to its use in applications such as cladding for ships' hulls, legs of oil rig platforms and sea water intake screens.

Coins
The copper nickel alloys composed of copper with 25% nickel with 0.05-0.4% manganese is commonly used for the manufacture of coins, medals and other semi valuable applications.

Resistance Wire
Due to the very low temperature co-efficient of electrical resistivity, the copper nickel alloys composed of copper with 45% nickel alloy is used for resistance wire in high precision resistors. This property of copper nickel alloys allows the resistor to operate at almost exactly the same resistance regardless of temperature.

Thermocouples
The copper nickel alloys composed of copper-45% nickel alloy is also used for thermocouples as it develops a high and uniform EMF when coupled with other metals such as copper and iron.

Other
Copper nickel alloys are also used in cooling circuits, ammunition, sea water corrosion-resistant assemblies, condenser tubes. Other Applications"


Sea water pipework
Offshore fire water systems
Heat exchangers and condensers
Sheathing of legs and risers on offshore platforms and boat hulls
Hydraulic lines
Fish cages for aquaculture

Desalination units


Property Table of Copper Nickel Alloys

lammability

5

Fresh Water

5

Organic Solvents

5

Oxidation at 500C

3

Sea Water

5

Strong Acid

2

Strong Alkalis

5

UV

5

Wear

5

Weak Acid

4

Weak Alkalis

5

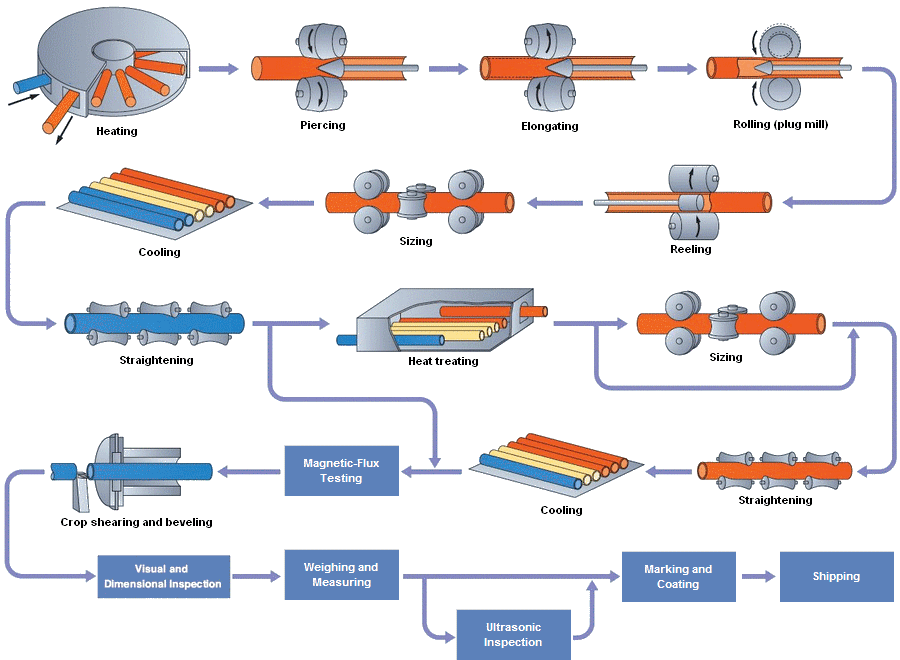

عملية

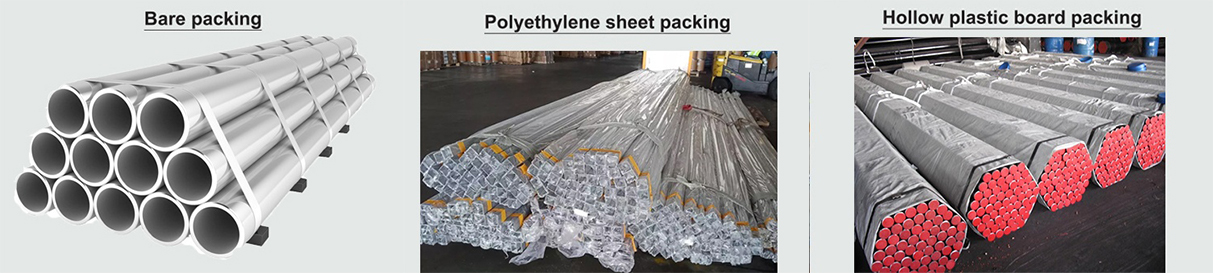

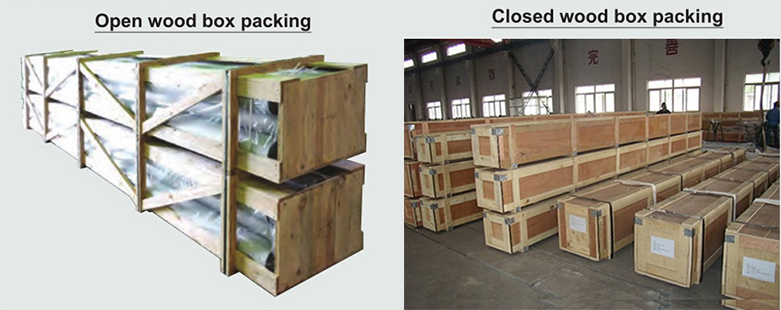

التعبئة
