We Super Steel Manufacturing Co.,Ltd(SMC) are amongst the top manufacturers and suppliers for the seamless steel pipe, welded steel pipe, OCTG products and fittings from China. We have been manufacturing and supplying these products to the industry since 1993, and received repeat orders and appreciation from our valued customers.
High quality piping products from approved manufacturers.
In order to continuously improve our offerings to our clients, we have consistently improved and upgraded our manufacturing facility and can hence offer material with stringent requirements.
Over the years, Super Steel Manufacturing Co.,Ltd(SMC) has developed an enviable reputation for project management for the Oil & Gas, Construction, Power Energy, Marine & Offshore, Water Treatment, Exploration & Drilling Services, Pipeline & Petrochemical and other heavy industries.
The many years of experience that we have means that there is always someone who has the ability to carry a project forward.
Always up to date. In this column you can find the steel pipe related articles, including industry trends, product standards and materials, and some technical guidelines.

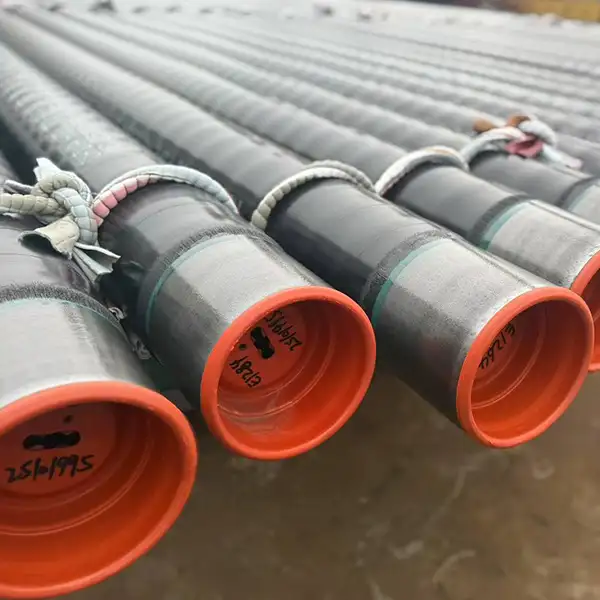

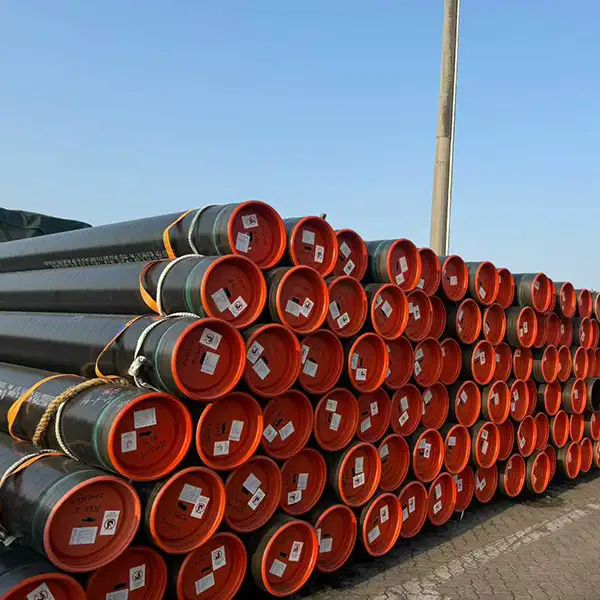

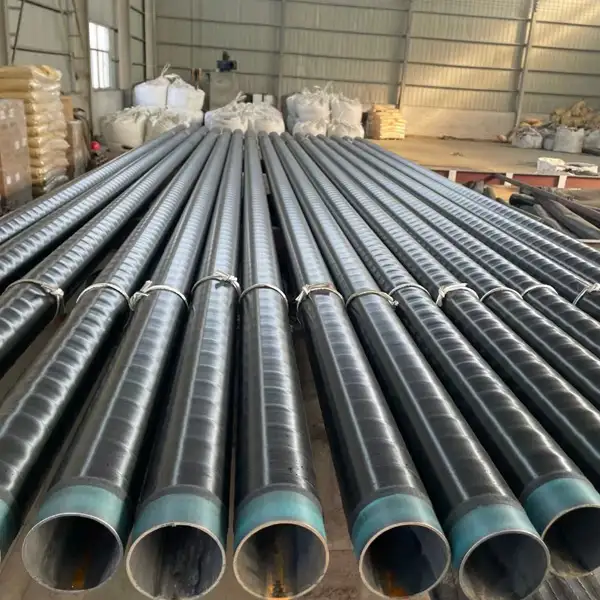

Product Name: Epoxy Coated Pipe, Epoxy Coating Pipeline
Size Range: 60.3mm-2540mm
Type: Seamless / Erw / Welded / Fabricated / Lsaw
Length: Single Random, Double Random
End: Plain End, Bevelled End, Threaded
Application: Used For Natural Gas, Petroleum, Water & Sewage, And Pipe Systems
product name:epoxy coated pipe, epoxy coating pipeline
size range: 60.3mm-2540mm
type:seamless / erw / welded / fabricated / lsaw
length:single random, double random
end:plain end, bevelled end, threaded
application: used for natural gas, petroleum, water & sewage, and pipe systems
|
standard |
api 5l |
||
|
grade |
psl-1 |
api 5l – gr.b/x42/x46/x52/x60/x70 etc. |
|
|
( material) |
psl-2 |
iso3183 – l245/l290/l320/l360/l415/l485 etc. |
|
|
minimum order quantity |
1 ton |
||
|
outside diameter ranges |
psl-1 |
0.405-80(in) or 10.3mm-2032mm |
|
|
psl-2 |
4 1/2 -80(in) or 114.3mm-2032mm |
||
|
wall thickness ranges |
sch10~sch160 or std,xs,xxs or 1.73mm~59.54mm |
||
|
length |
for 20ft container |
4.8m-5.8m |
|
|
(negotiable) |
for 40ft container |
4.8m-12m |
|
|
|
most common choice |
6m, 12m |
|
|
type |
welded |
erw,lsaw/ssaw |
|
|
seamless |
cold drawn,hot finished,hot expanded |
||
|
cap (negotiable) |
pipe size should under dn600 |
||
|
pipe end |
plain end |
all sizes |
|
|
bevel end |
pipe size above dn50, and the thickness should greater than 3.2mm |
||
|
our advantages |
·diverse products(steel pipes, pipe fittings, other fittings) |
||
|
·any third party inspection is accepted by we company. |
|||
|
·quick response in quotation,delivery,after-service. |
|||
|
·focus on pipe & tube solution for project application. |
|||
|
external coating |
|
|
coating type |
coating standard |
|
3lpe/3lpp |
din30670-1991,can/csa z245,21-2010,iso21809-1-2009 sy/t 0413-2002,gb/t23257-2009 |
|
2lpe/2lpp |
sy/t 0315-2002,gb/t23257-2009,iso21809-1-2009 |
|
fbe(fusion-bond epoxy) |
sy/t 0315-2005,awwa c213-2001,can/csaz245.20-2010,iso218909-2-2007,api rp5l9-2001 |
|
bitumen coating
enamel &tape hot-applied |
bs534-1990,awwa203-2002,awwa214-2000 |
|
liquid epoxy coating |
awwwa c210-2007 |
|
polyurethane insulated coating |
sy/t0415-1996,cj/t114-2000.en253-1994 |
|
internal coating |
|
|
liquid epoxy coating |
awwac210-2007 |
|
fbe |
awwac213-2001 |
|
cement mortar lining |
bs534-1990,awwa c205-2001 |
|
bitumen coating |
bs534-1990 |
|
coating thickness |
.004" to .006" per coat |
|
temperature range |
300°f maximum |
|
chemical resistance (astm d543) |
excellent |
|
hardness (astm d3363) |
> 8 h |
|
adhesion (astm d4541) |
1933 psi |
|
coating color |
various options available |
|
standard of epoxy coated pipe |
ac298 internal epoxy barrier pipe coating awwa c210 liquid epoxy coating and lining igc 189-2006 : internal epoxy barrier pipe coating material nsf/ansi standard 61 -for drinking water systems components awwa c 213 csa z245.20 is 3589 annexure c |
|
fbe coated pipe marking |
manufacturer’s name, logo or trademark trade designation nsf se |
|
color code ofsolvent free epoxy coating |
yellow black green gray iron red light blue |
| .d. | o.d. | sch 10 | sch 30/40 | ||||||||
| w.t. | normal weight | w.t. | normal weight | ||||||||
| (mm) | (inch) | (mm) | (inch) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) |
| 15 | 1/2'' | 21.30 | 0.840 | ---- | ---- | ---- | ---- | 2.77 | 0.109 | 1.27 | 0.85 |
| 20 | 3/4'' | 26.70 | 1.050 | 2.11 | 0.083 | 1.28 | 0.96 | 2.87 | 0.113 | 1.69 | 1.13 |
| 25 | 1'' | 33.40 | 1.315 | 2.77 | 0.109 | 2.09 | 1.41 | 3.38 | 0.133 | 2.50 | 1.68 |
| 32 | 1.1/4'' | 42.20 | 1.660 | 2.77 | 0.109 | 2.69 | 1.81 | 3.56 | 0.140 | 3.39 | 2.27 |
| 40 | 1.1/2'' | 48.30 | 1.900 | 2.77 | 0.109 | 3.11 | 2.09 | 3.68 | 0.145 | 4.05 | 2.72 |
| 50 | 2'' | 60.30 | 2.375 | 2.77 | 0.109 | 3.93 | 2.64 | 3.91 | 0.154 | 5.45 | 3.66 |
| 65 | 2.1/2'' | 73.00 | 2.875 | 3.05 | 0.120 | 5.26 | 3.53 | 5.16 | 0.203 | 8.64 | 5.80 |
| 80 | 3'' | 88.90 | 3.500 | 3.05 | 0.120 | 6.46 | 4.34 | 5.49 | 0.216 | 11.29 | 7.58 |
| 90 | 3.1/2'' | 101.60 | 4.000 | 3.05 | 0.120 | 7.41 | 4.98 | 5.74 | 0.226 | 13.58 | 9.12 |
| 100 | 4'' | 114.30 | 4.500 | 3.05 | 0.120 | 8.37 | 5.62 | 6.02 | 0.237 | 16.09 | 10.80 |
| 125 | 5'' | 141.30 | 5.563 | 3.40 | 0.134 | 11.58 | 7.78 | 6.55 | 0.258 | 21.79 | 14.63 |
| 150 | 6'' | 168.30 | 6.625 | 3.40 | 0.134 | 13.85 | 9.30 | 7.11 | 0.280 | 28.29 | 18.99 |
| 200 | 8'' | 219.10 | 8.625 | 4.78 | 0.188 | 25.26 | 16.96 | 7.04 | 0.277 | 36.82 | 24.72 |
| 250 | 10'' | 273.10 | 10.750 | 4.78 | 0.188 | 31.62 | 21.23 | 7.08 | 0.307 | 51.05 | 34.27 |
bundled package
on bundle of steel tube shall be the same in batch number, steel grade and specification. the rest of tubing less than one bundle should be tied into small bundles.showed below
wooden box package
the wooden box is suitable for cold roling or cold drawing seamless steel tube, polished hot rolled stainless steel tube.
when the outer diameter of steel pipe is greater than or equal 10mm, the maximum weight of the container should be 50kg.
when the outer diameter of steel pipe is less than or equal 10mm, the maximum weight of the container should be 30kg.
|
coating thickness |
.004" to .006" per coat |
|
temperature range |
300°f maximum |
|
chemical resistance (astm d543) |
excellent |
|
hardness (astm d3363) |
> 8 h |
|
adhesion (astm d4541) |
1933 psi |
|
coating color |
various options available |
|
standard of epoxy coated pipe |
ac298 internal epoxy barrier pipe coating awwa c210 liquid epoxy coating and lining igc 189-2006 : internal epoxy barrier pipe coating material nsf/ansi standard 61 -for drinking water systems components awwa c 213 csa z245.20 is 3589 annexure c |
|
fbe coated pipe marking |
manufacturer’s name, logo or trademark trade designation nsf se |
|
color code ofsolvent free epoxy coating |
yellow black green gray iron red light blue |
| .d. | o.d. | sch 10 | sch 30/40 | ||||||||
| w.t. | normal weight | w.t. | normal weight | ||||||||
| (mm) | (inch) | (mm) | (inch) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) |
| 15 | 1/2'' | 21.30 | 0.840 | ---- | ---- | ---- | ---- | 2.77 | 0.109 | 1.27 | 0.85 |
| 20 | 3/4'' | 26.70 | 1.050 | 2.11 | 0.083 | 1.28 | 0.96 | 2.87 | 0.113 | 1.69 | 1.13 |
| 25 | 1'' | 33.40 | 1.315 | 2.77 | 0.109 | 2.09 | 1.41 | 3.38 | 0.133 | 2.50 | 1.68 |
| 32 | 1.1/4'' | 42.20 | 1.660 | 2.77 | 0.109 | 2.69 | 1.81 | 3.56 | 0.140 | 3.39 | 2.27 |
| 40 | 1.1/2'' | 48.30 | 1.900 | 2.77 | 0.109 | 3.11 | 2.09 | 3.68 | 0.145 | 4.05 | 2.72 |
| 50 | 2'' | 60.30 | 2.375 | 2.77 | 0.109 | 3.93 | 2.64 | 3.91 | 0.154 | 5.45 | 3.66 |
| 65 | 2.1/2'' | 73.00 | 2.875 | 3.05 | 0.120 | 5.26 | 3.53 | 5.16 | 0.203 | 8.64 | 5.80 |
| 80 | 3'' | 88.90 | 3.500 | 3.05 | 0.120 | 6.46 | 4.34 | 5.49 | 0.216 | 11.29 | 7.58 |
| 90 | 3.1/2'' | 101.60 | 4.000 | 3.05 | 0.120 | 7.41 | 4.98 | 5.74 | 0.226 | 13.58 | 9.12 |
| 100 | 4'' | 114.30 | 4.500 | 3.05 | 0.120 | 8.37 | 5.62 | 6.02 | 0.237 | 16.09 | 10.80 |
| 125 | 5'' | 141.30 | 5.563 | 3.40 | 0.134 | 11.58 | 7.78 | 6.55 | 0.258 | 21.79 | 14.63 |
| 150 | 6'' | 168.30 | 6.625 | 3.40 | 0.134 | 13.85 | 9.30 | 7.11 | 0.280 | 28.29 | 18.99 |
| 200 | 8'' | 219.10 | 8.625 | 4.78 | 0.188 | 25.26 | 16.96 | 7.04 | 0.277 | 36.82 | 24.72 |
| 250 | 10'' | 273.10 | 10.750 | 4.78 | 0.188 | 31.62 | 21.23 | 7.08 | 0.307 | 51.05 | 34.27 |
bundled package
on bundle of steel tube shall be the same in batch number, steel grade and specification. the rest of tubing less than one bundle should be tied into small bundles.showed below
wooden box package
the wooden box is suitable for cold roling or cold drawing seamless steel tube, polished hot rolled stainless steel tube.
when the outer diameter of steel pipe is greater than or equal 10mm, the maximum weight of the container should be 50kg.
when the outer diameter of steel pipe is less than or equal 10mm, the maximum weight of the container should be 30kg.
