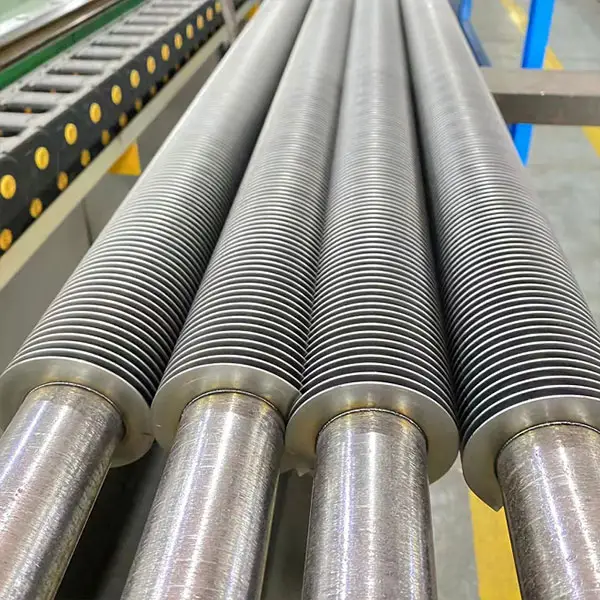

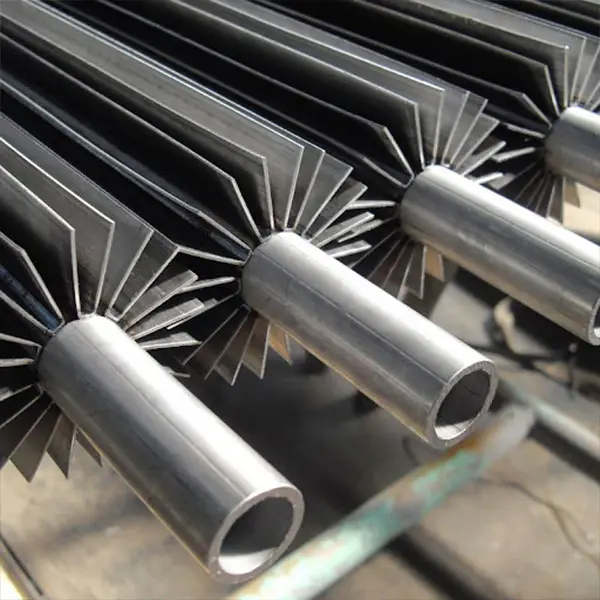

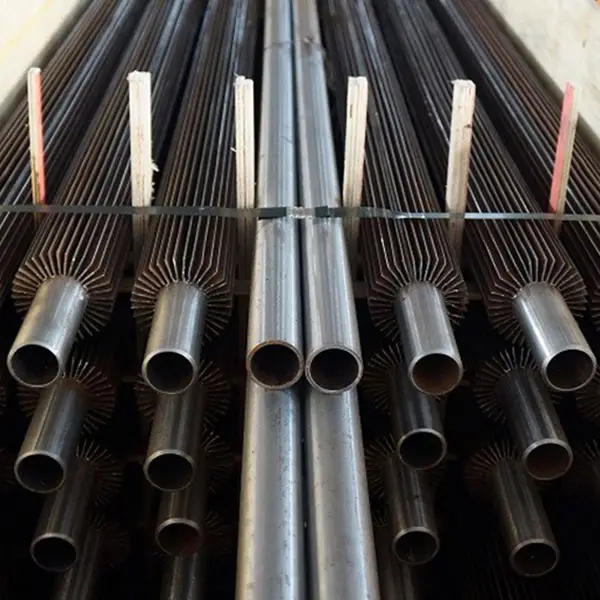

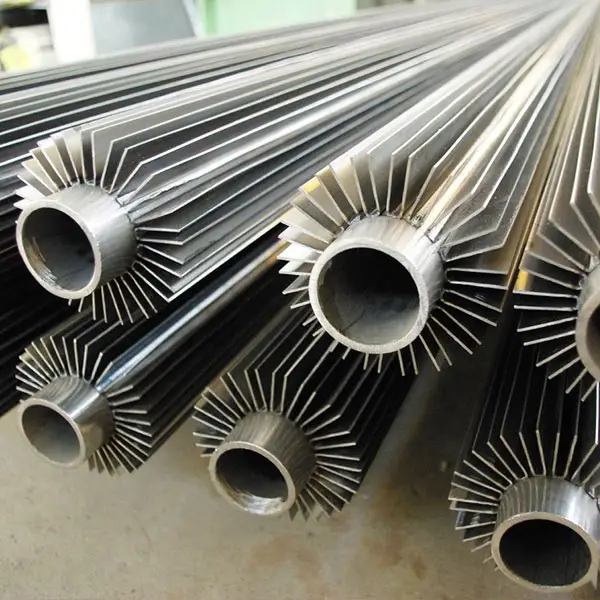

Product Name: Steel Fin Tube, Welded Fin Tubes, Spiral Finned Tube, Longitudinal Finned Tube
Base Pipe OD: 15.88-273mm
Fin Height: 4.0-50mm
Fin Thickness: 0.3 -1.5mm
Number of Fins: Depending on the tube OD
Fin Pitch: as customer's request.
End: Plain Ends, Beveled Ends
Product Name: Steel Fin Tube, Welded Fin Tubes, Spiral Finned Tube, Longitudinal Finned Tube
Base Pipe OD: 15.88-273mm
Fin Height: 4.0-50mm
Fin Thickness: 0.3 -1.5mm
Number of Fins: Depending on the tube OD
Fin Pitch: as customer's request.
End: Plain Ends, Beveled Ends
Base Tube Material
• Stainless Steel：ASME SA213/ASTM A213 ；TP304/304L TP316/TP316L TP321 TP310S TP317,
• Carbon Steel：ASME SA106/ASTM A106 Gr B Gr C,
• Alloy Steel：ASME SA179/ASTM A179,ASME SA192/ASTM A192/Monel 400, Inconel 625
• Copper and Copper Alloy：Brass, Aluminum Brass, Cupronickel 70/30-90/10
Finned tubes are a type of heat exchanger that is used in many different industries. These tubes have a finned surface, which increases their surface area and allows them to transfer heat more efficiently. This makes them ideal for applications where high heat transfer rates are required, such as in power plants and refrigeration systems.
In addition to their high thermal performance, fin tubes are also durable and long-lasting. They are resistant to corrosion and can withstand the harsh environments often found in industrial settings. This makes them a cost-effective solution for many different industries.
|
Type |
Description |
Base tube |
Fin specification (mm) |
||
|
Fin pitch |
Fin height |
Fin thick |
|||
|
Embedded |
G-type fin tube |
16-63 |
2.1-5 |
<17 |
~0.4 |
|
Extruded |
Single metal combined metal |
8-51 |
1.6-10 |
<17 |
0.2-0.4 |
|
Low fin tube t-type fin tube |
10-38 |
0.6-2 |
<1.6 |
~0.3 |
|
|
Bamboo tube corrugated tube |
16-51 |
8-30 |
<2.5 |
/ |
|
|
Wound |
l/kl/ll type fin tube |
16-63 |
2.1-5 |
<17 |
~0.4 |
|
String |
String fin tube |
25-38 |
2.1-3.5 |
<20 |
0.2-0.5 |
|
U-type |
U-type tube |
16-38 |
/ |
/ |
/ |
|
Welding |
HF-welding fin tube |
16-219 |
3-25 |
5-30 |
0.8-3 |
|
H/HH type fin tube |
25-63 |
8-30 |
<200 |
1.5-3.5 |
|
|
Studed fin tube |
25-219 |
8-30 |
5-35 |
φ5-20 |
|
|
Fin material |
N° fins per meter |
Strip thickness |
Production capacity |
|
All type of material |
From 50 to 500 |
From 0,4mm. to 0,5mm. |
More than 500 meters per day |
|
Tube material |
Tube thickness |
O.D. tube |
Lenght available |
|
All type of material |
1,00mm. minimum |
From 10,00mm. to 200,00mm. |
All lenghts up to 8 Meters |
|
Base Tube O.D(mm) |
Base Tube Thickness (mm) |
Fin Height (mm) |
Fin Thickness(mm) |
Fin NO.(Pc) |
|
25.4 mm ~152.4 mm |
1.0 mm ~4.0 mm |
5.0 mm ~16.0 mm |
0.89 mm ~1.5 mm |
2 ~ 36 |
|
Base Tube Material |
Fin Material |
Tube Length (Mtr) |
|
|
|
Carbon Steel ,Alloy Steel ,Stainless Steel |
Carbon Steel ,Alloy Steel ,Stainless Steel |
≤ 15Mtrs |
|
|
Type |
Description |
Base tube |
Fin specification (mm) |
||
|
Fin pitch |
Fin height |
Fin thick |
|||
|
Embedded |
G-type fin tube |
16-63 |
2.1-5 |
<17 |
~0.4 |
|
Extruded |
Single metal combined metal |
8-51 |
1.6-10 |
<17 |
0.2-0.4 |
|
Low fin tube t-type fin tube |
10-38 |
0.6-2 |
<1.6 |
~0.3 |
|
|
Bamboo tube corrugated tube |
16-51 |
8-30 |
<2.5 |
/ |
|
|
Wound |
l/kl/ll type fin tube |
16-63 |
2.1-5 |
<17 |
~0.4 |
|
String |
String fin tube |
25-38 |
2.1-3.5 |
<20 |
0.2-0.5 |
|
U-type |
U-type tube |
16-38 |
/ |
/ |
/ |
|
Welding |
HF-welding fin tube |
16-219 |
3-25 |
5-30 |
0.8-3 |
|
H/HH type fin tube |
25-63 |
8-30 |
<200 |
1.5-3.5 |
|
|
Studed fin tube |
25-219 |
8-30 |
5-35 |
φ5-20 |
|
|
Fin material |
N° fins per meter |
Strip thickness |
Production capacity |
|
All type of material |
From 50 to 500 |
From 0,4mm. to 0,5mm. |
More than 500 meters per day |
|
Tube material |
Tube thickness |
O.D. tube |
Lenght available |
|
All type of material |
1,00mm. minimum |
From 10,00mm. to 200,00mm. |
All lenghts up to 8 Meters |
|
Base Tube O.D(mm) |
Base Tube Thickness (mm) |
Fin Height (mm) |
Fin Thickness(mm) |
Fin NO.(Pc) |
|
25.4 mm ~152.4 mm |
1.0 mm ~4.0 mm |
5.0 mm ~16.0 mm |
0.89 mm ~1.5 mm |
2 ~ 36 |
|
Base Tube Material |
Fin Material |
Tube Length (Mtr) |
|
|
|
Carbon Steel ,Alloy Steel ,Stainless Steel |
Carbon Steel ,Alloy Steel ,Stainless Steel |
≤ 15Mtrs |
|
