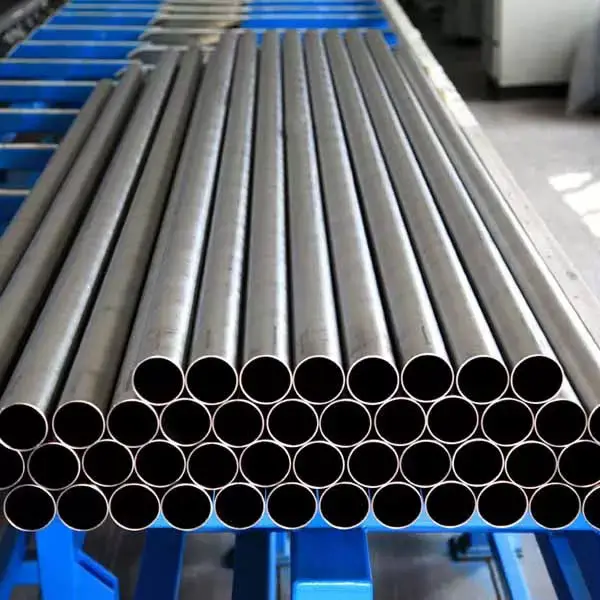

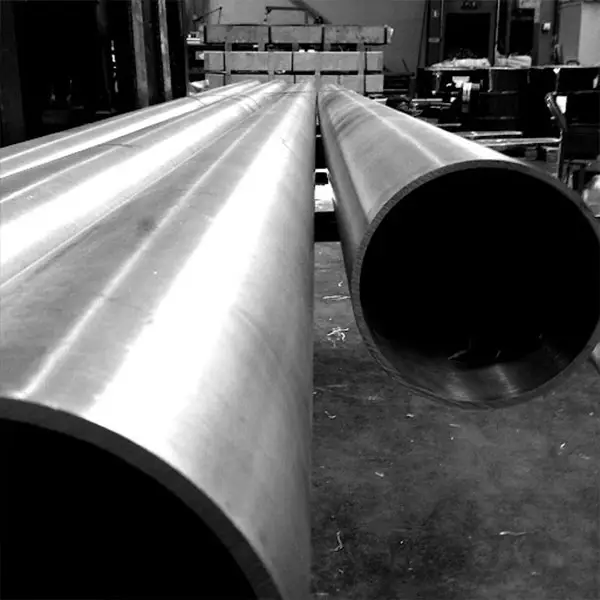

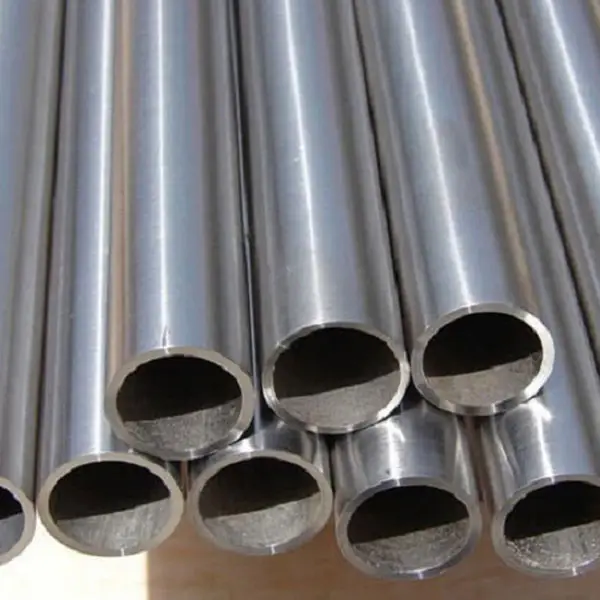

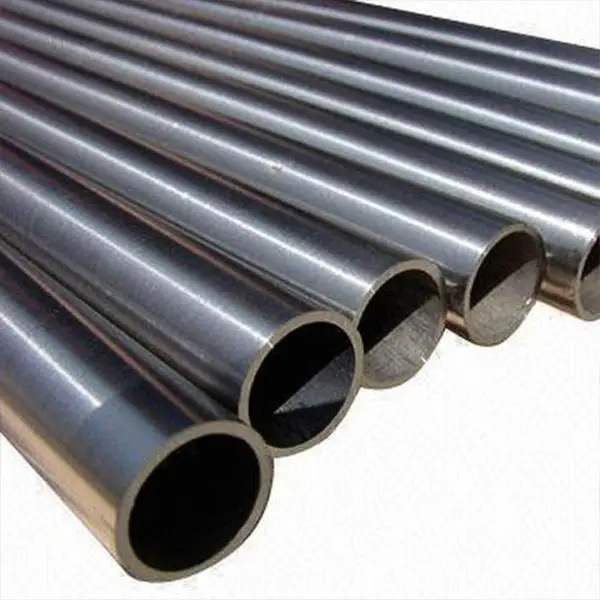

Product name |
Titanium steel Pipe;Titanium steel Tube |
|
Standard |
ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928 |
|
Material |
GR1, GR2, GR5, GR7, GR9, GR11, GR12, ETC |
|
Length |
≤14000mm |
|
Size(mm) |
Diameter 3-508 |
|
Section shape |
Round/ Square |
|
Certification |
ISO9001 |
|
Surface treatment |
Pickling, Polished, Bright finish etc. |
Product Name: Titanium Alloy Pipe ,Seamless Titanium Tube,Astm Titanium Seamless Tube, Titanium Tube
Outer Diameter：6-2500mm， (3/8"-100")
Thickness：0.3-150mm，(Sch10-Xxs)
Length： 2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm， Etc
Standard： Astm/Asme B338, B337, B861,B862,Jis H4631 Jis H4630 Aisi，Jis, Din,，En
Surface ：Ba，2b，No.1，No.4，4k，Hl，8k
Material: Titanium Gr1, Gr2, Gr3, Gr5, Gr7, Gr9 Gr12
Certification：Iso, Sgs，Bv

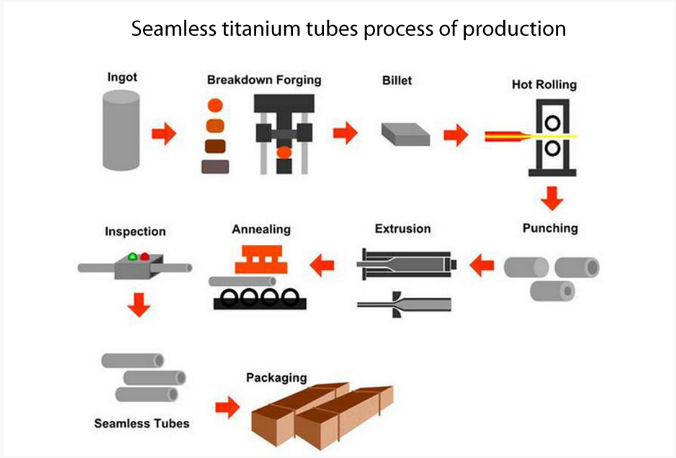

Technique：Cold Drawn Seamless Tube / Welded Pipe
Edge：Mill Edge Slit Edge
Application: It Is Widely Used In High-Temperature And Electric Industry, Medical Devices, Construction, Chemistry, Food Industry, Agriculture, And Ship Components.
It Also Applies To Food And Beverage Packaging, Kitchen Supplies, Trains, Aircraft, Conveyor Belts, Vehicles, Bolts, Nuts, Springs, And Screen Mesh Etc.
ngredient：
|
astm/asme |
gb |
jis |
element content（wt%） |
mechanical properties |
|||||||
|
n,max |
c,max |
h，max |
fe,max |
o,max |
others |
strength of extension |
ductility |
||||
|
pure titanium |
gr.1 |
ta1 |
class1 |
0.03 |
0.08 |
0.015 |
0.2 |
0.18 |
|
240 |
24 |
|
gr.2 |
ta2 |
class2 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
|
345 |
20 |
|
|
gr.3 |
ta3 |
class3 |
0.05 |
0.08 |
0.015 |
0.3 |
0.35 |
|
450 |
18 |
|
|
gr.4 |
ta4 |
class4 |
0.05 |
0.08 |
0.015 |
0.5 |
0.4 |
|
550 |
15 |
|
|
titanium alloy |
gr.5 |
tc4 |
class60 |
0.05 |
0.08 |
0.015 |
0.4 |
0.2 |
ai:5.5-6.75 |
895 |
10 |
|
gr.7 |
ta9 |
class12 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
pd:0.12-0.25 |
345 |
20 |
|
|
gr.9 |
tc2 |
class61 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
ai:2.5-3.5 |
620 |
15 |
|
|
gr.11 |
ta9-1 |
class11 |
0.03 |
0.08 |
0.015 |
0.2 |
0.18 |
pd:0.12-0.25 |
240 |
24 |
|
|
gr.23 |
tc4 eli |
class60e |
0.03 |
0.08 |
0.0125 |
0.25 |
0.13 |
ai:5.5-6.5 |
828 |
10 |
|
Types of Titanium Alloys
Ti 6AL-4V
Ti 6AL ELI
Ti 3Al 2.5
Ti 5Al-2.5Sn
Ti Alloy ASTM Standard
ASTM Publications
|
ASTM A 480 |
Flat Rolled and Heat Resisting Steel - Sheet, Plate, Coil and Strip |
|
ASTM E 8 |
Metallic Material Tension Testing |
|
ASTM E 120 |
Ti and Ti-Base Alloys, Semi-Guided Chemical Analysis |
|
ASTM E 290 |
Metallic Materials Ductility Bend Test |
ASTM Specification
|
ASTM-F136-98e1 |
Wrought Ti-6 Aluminum-4 Vanadium ELI (Extra Low Interstitial) Alloy (UNSR56401) for Surgical Implant Applications |
|
ASTM-F67-00 |
Unalloyed Ti for Surgical Implant Applications (UNS R50250 / R50400 / R50550 / R50700) |
|
ASTM-F1108-97a |
Ti6AL4V Alloy Castings for Surgical Implants (UNS R56406) |
|
ASTM-F-620-00 |
Alpha Plus Beta Ti Alloy Forgings Products |
|
ASTM-F1472-99 |
Wrought Ti-6 Aluminum-4 Alloy UNS R56400 |
|
ASTM-F1341-99 |
Unalloyed Ti Wire UNS R50250, R50400, R50550, R50700 |
|
ASTM-F1295-97a |
UNS R56700 Ti-6 Aluminum-7 Niobium Alloy |
|
ASTM B265-99 |
Strips, Sheets, Plates |
|
ASTM-B299-99 |
Sponges |
|
ASTM-B338-99 |
Seamless, Welded Tubing for Heat Exchangers, Boilers, Condensers |
|
ASTM-B348-00 |
Bar, rod, Billet |
|
ASTM-B363-00 |
Seamless and Welded Buttweld Pipe Fittings (Unalloyed) |
|
ASTM-B367-93 (1998) |
Casting products |
|
ASTM-B381-00 |
Forging products |
|
ASTM-B861-00 |
Seamless Pipes |
|
ASTM-B862-99 |
Welded Pipes |
|
ASTM-B863-99a |
Wires |
Specification of Titanium
|
Commercially Pure Titanium Alloy |
|
|
(CP) CODE |
min. ksi or Yield Strength |
|
CP-1 |
(70 KSI) |
|
CP-2 |
(55 KSI) |
|
CP-3 |
(40 KSI) |
|
CP-4 |
(30 KSI) |
|
Alpha Titanium Alloys (A) |
|
|
CODE |
Composition Chart |
|
A-1 |
5AL-2.5Sn |
|
A-2 |
5AL-2.5Sn (ELI) |
|
A-3 |
6AL-2Cb-1Ta-0.8Mo |
|
A-4 |
8AL-1Mo-1V |
|
Alpha-Beta Titanium Alloy |
|
|
(AB) CODE |
Composition Chart |
|
AB-1 |
6AL-4V |
|
AB-2 |
6AL-4V (ELI) |
|
AB-3 |
6AL-6V-2Sn |
|
AB-4 |
6AL-2Sn-4Zr-2Mo |
|
AB-5 |
3.AL-2.5V |
|
AB-6 |
8Mn |
|
Beta Titanium Alloys (B) |
|
|
CODE |
Composition Chart |
|
B-1 |
13V-11Cr-3AL |
|
B-2 |
11.5Mo-6Zr-4.5Sn |
|
B-3 |
3AL-8V-6Cr-4Mo-4Zr |
|
B-4 |
8Mo-8V-2Fe-3AL |
Ti Alloy Applications & Uses
Aircraft engines and frames
Architectural, Consumer
Industrial purpose
Medical purpose
Titanium Chemical Composition Standard
|
Grade |
Information |
|
5 |
Ti alloy (6% aluminium, 4% vanadium) |
|
7 |
Unalloyed Ti plus 0.12% to 0.25% palladium, standard oxygen, medium strength |
|
9 |
Ti alloy (3% aluminium, 2.5% vanadium), high strength. Mainly aerospace applications |
|
11 |
Unalloyed Ti plus 0.12% to 0.25% palladium, low oxygen/ strength |
|
12 |
Ti alloy (0.3% molybdenum, 0.8% nickel), high strength |
|
13 |
Ti alloy (0.5% nickel, 0.05% ruthenium), low oxygen |
|
14 |
Ti alloy (0.5% nickel, 0.05% ruthenium), standard oxygen |
|
15 |
Ti alloy (0.5% nickel, 0.05% ruthenium), medium oxygen |
|
16 |
Unalloyed Ti plus 0.04% to 0.08% palladium, medium strength, standard oxygen |
|
17 |
Unalloyed Ti plus 0.04% to 0.08% palladium, low oxygen/ strength |
|
18 |
Ti alloy (3% aluminium, 2.5% vanadium plus 0.04% to 0.08% palladium), |
|
19 |
Ti alloy (3% aluminium, 8% vanadium, 4% zirconium, 6% chromium, 4% molybdenum) |
|
20 |
Ti alloy (3% aluminium, 8% vanadium, 4% zirconium, 6% chromium, 4% molybdenum) plus 0.04% to 0.08% palladium |
|
21 |
Ti alloy (15% molybdenum, 2.7% niobium, 3% aluminium, 0.25% silicon) |
|
23 |
Ti alloy (4% vanadium, 6% aluminium, extra low interstitial, ELI) |
|
24 |
Ti alloy (4% vanadium, 6% aluminium) plus 0.04% to 0.08% palladium |
|
25 |
Ti alloy (4% vanadium, 6% aluminium) plus 0.04% to 0.08% palladium, 0.3% to 0.8% nickel |
|
26 |
Unalloyed Ti plus 0.08% to 0.14% ruthenium, medium strength, standard oxygen |
|
27 |
Unalloyed Ti plus 0.08% to 0.14% ruthenium, low oxygen/ strength |
|
28 |
Ti alloy (2.5% vanadium, 3% aluminium) plus 0.08% to 0.14% ruthenium |
|
29 |
Ti alloy 0.08% to 0.14% ruthenium, (6% aluminium, 4% vanadium with ELI) |
Mechanical Strength Table of Ti Alloy
|
|
Ultimate Tensile Strength minimum |
Yield Strength minimum |
Elongation minimum |
||
|
GRADE |
KSI |
Mpa |
KSI |
Mpa |
% |
|
Gr 1 |
35 |
240 |
25 |
170 |
24 |
|
Gr 2 |
50 |
345 |
40 |
275 |
20 |
|
Gr 3 |
65 |
450 |
55 |
380 |
18 |
|
Gr 4 |
80 |
550 |
70 |
485 |
15 |
|
Ti 2% Pd (Gr.7) |
50 |
345 |
40 |
275 |
20 |
|
Gr 12 |
70 |
483 |
50 |
345 |
18 |
|
Ti-6AL-4V |
130 |
895 |
120 |
830 |
10 |
|
Ti-4AL-4Mo-1.5Sn |
170 |
1160 |
125 |
850 |
10 |
|
Ti-10-2-3 |
180 |
1250 |
160 |
1100 |
8 |
|
Ti-15-3 |
185 |
1280 |
160 |
1100 |
10 |
|
Ti-6-2-4-2 |
160 |
1100 |
120 |
830 |
10 |
|
Ti-6-2-4-6 |
190 |
1300 |
140 |
970 |
10 |
Melting Point of Titanium Metal
|
Melting point range |
1670 Deg C, 3038 Deg F, 1943 K |
|
Boiling point range |
3287 Deg C, 5949 Deg F, 3560 K |
|
Density (g cm−3) |
4.506 |
