Alloy Steel Pipe

ASTM A210 Alloy Tube, ASME SA210 Alloy Tube, Alloy Seamless Tube
SA210 Alloy Tube

SA210 Alloy Tube

Standard: Astm A210, Asme Sa210

Material Grades: Gr.A1, Gr.C

Outside Diameter: 12.7-152.4mm Or Customized

Wall Thickness: 1.5 - 25.4mm

Length: 6 Meters Or Customized

Ends: Bevled End, Plain End, Thread End

Type: Seamless

Applications: Heat Exchanger, Boiler, Petroleum, Condenser, Oil And Gas Plant, Etc.

High Light: Boilers Carbon Steel Tubes, Superheaters Carbon Steel Tubes

  • SA210 Alloy Tube
  • SA210 Alloy Tube
  • SA210 Alloy Tube
  • SA210 Alloy Tube
  • Description
  • Specification
  • Standard

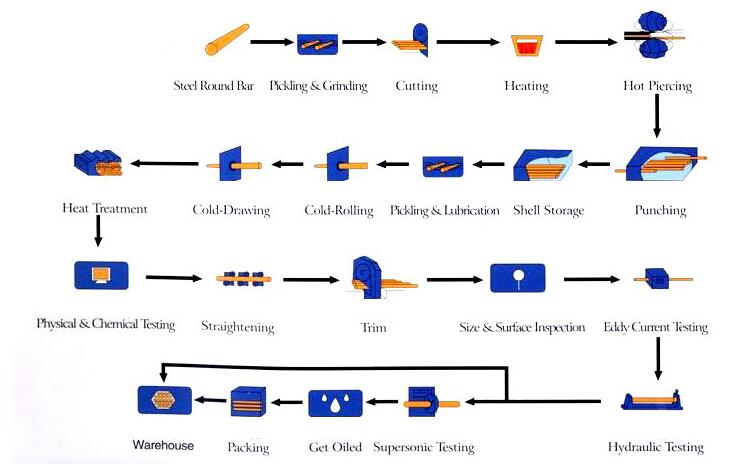

  • Process

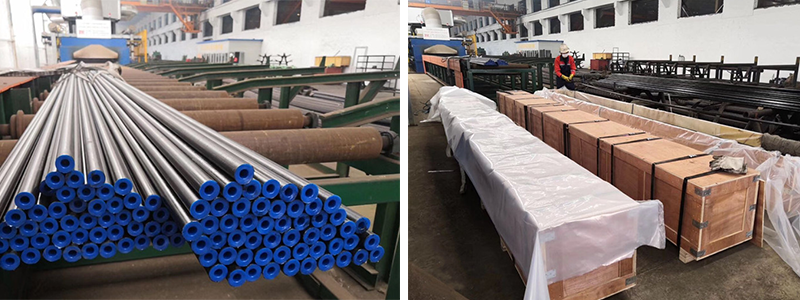

  • Packing

Description

Astm A210 Is The Standard Covers Seamless Medium-Carbon Steel Boiler And Superheater Tubes. Seamless Medium Carbon Steel Pipe For Boiler Tube And Boiler Flue Pipe, Including A Minimum Wall Thickness Of The Security Side, The Dome And The Support Tube And Superheater Tubes.

Astm A210/Asme Sa210 Standard Specification For Seamless Medium-Carbon Steel Boiler And Superheater Tubes.

Specification

chemical / mechanical properties of asme sa210 boiler tubing

grade

c

si

mn

su

ps

sa210 grade c

0.35

0.10

0.29-1.06

0.035

0.035

sa210 grade a1

0.27

0.10

0.93

0.035

0.035

mechanical composition of asme sa210 boiler tubes

grade

tensile strength(mpa)

yield strength(mpa)

elongation (%)

a1

≥ 415

≥ 255

≥ 30c

c

≥ 485

≥ 275

≥ 30

Standard

astm a210, asme sa210

Process

Packing

Specification

chemical / mechanical properties of asme sa210 boiler tubing

grade

c

si

mn

su

ps

sa210 grade c

0.35

0.10

0.29-1.06

0.035

0.035

sa210 grade a1

0.27

0.10

0.93

0.035

0.035

mechanical composition of asme sa210 boiler tubes

grade

tensile strength(mpa)

yield strength(mpa)

elongation (%)

a1

≥ 415

≥ 255

≥ 30c

c

≥ 485

≥ 275

≥ 30

Standard

astm a210, asme sa210

Process

Packing

If you have any inquiries and questions, please contact us at any time. Thanks in advance. Welcome!
