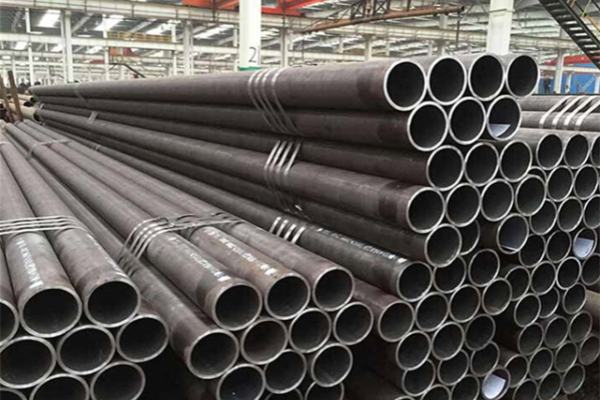

The internal quality of boiler steel pipes and pressure vessel welds is critical to operational safety. However, many internal defects—such as lack of fusion, incomplete penetration, slag inclusions, porosity, and cracks—are difficult or impossible to detect through visual inspection alone.
Because destructive testing cannot be performed on every boiler or pressure vessel, nondestructive testing (NDT) has become an essential quality control method in boiler pipe manufacturing, installation, and service inspection.
NDT evaluates internal defects without damaging the structure, using physical principles to detect changes in material properties and infer internal conditions.
Purpose of Nondestructive Testing for Boiler Steel Pipes
The main objectives of NDT are:
Ensure manufacturing quality
Detect weld and material defects early to improve process control.
Reduce scrap and rework costs
Identify defects before final assembly or delivery, saving time and production expenses.
Improve safety and reliability
Prevent boiler and pressure vessel failures by identifying hidden risks.
Support full life-cycle quality control
NDT is applied during design, manufacturing, installation, operation, and maintenance to identify factors that may cause damage and continuously improve system reliability.
Common Nondestructive Testing Methods for Steel Pipes
The most widely used NDT methods for boiler and pressure vessel steel pipes include:
Radiographic Testing (RT)
Ultrasonic Testing (UT)
Magnetic Particle Testing (MT)
Liquid Penetrant Testing (PT)
Eddy Current Testing (ET)
Acoustic Emission Testing (AE)
Leak Testing, Stress Testing, and Visual Inspection (VT)
Each method targets different defect types and application scenarios.
1. Radiographic Testing (RT)
Radiographic testing uses the penetration ability of X-rays or gamma rays to inspect weld quality based on the projection principle.
Working Principle
Radiation passes through the weld metal.
Defects such as cracks, pores, slag inclusions, or incomplete penetration attenuate radiation differently than sound metal.
These differences are recorded on film or digital detectors, revealing defect size, shape, and location.
Key Features
Highly sensitive to volumetric defects (e.g., slag inclusions, porosity)
Permanent inspection records
Widely accepted in boiler and pressure vessel regulations
Typical Applications
Longitudinal and circumferential welds of boiler drums
Headers and pressure-bearing components
Mandatory inspection for many regulated pressure ranges
2. Ultrasonic Testing (UT)
Ultrasonic testing detects internal defects by analyzing the reflection of high-frequency sound waves at material interfaces.
Working Principle
Ultrasonic waves propagate through the weld.
When encountering defects, waves are reflected back to the probe.
Defect location and size are determined from the reflected signals.
Advantages
Highly sensitive to planar defects such as cracks and lack of penetration
Particularly effective for thick-walled boiler pipes
No radiation hazards
Limitations
Results depend heavily on operator experience
Traditional UT lacks permanent record storage (though modern digital UT addresses this)
3. Magnetic Particle Testing (MT)
Magnetic particle testing is used to detect surface and near-surface defects in ferromagnetic materials.
Working Principle
The weld is magnetized using an external magnetic field.
Surface or near-surface defects create leakage magnetic fields.
Fine magnetic particles accumulate at defect locations, making them visible to the naked eye.
Key Characteristics
Extremely sensitive to cracks
Best when defects are perpendicular to magnetic field lines
Widely used for boiler pressure vessels and spherical tanks
4. Liquid Penetrant Testing (PT)
Liquid penetrant testing detects surface-breaking defects regardless of material magnetism.
Working Principle
Apply penetrant liquid to the weld surface.
Penetrant enters surface defects via capillary action.
Remove excess penetrant and apply developer.
Defects appear as visible indications.
Methods
Color penetrant testing (visible dye)
Fluorescent penetrant testing (UV light inspection)
Applications
Surface crack detection
Suitable for both metallic and non-metallic materials
Ideal for non-magnetic steel components
5. Eddy Current Testing (ET)
Eddy current testing uses electromagnetic induction to detect defects in conductive materials.
Working Principle
An excitation coil induces eddy currents in the workpiece.
Defects alter current flow, producing measurable signal changes.
Probe Types
Through-type coils (pipes, rods, wires)
Probe-type coils (surface inspection)
Insertion probes (internal pipe wall inspection)
Advantages
Non-contact and high-speed inspection
Easily automated
Effective for surface and near-surface defects
Can also detect dimensional and material property changes
6. Acoustic Emission Testing (AE)
Acoustic emission testing detects sound waves released by materials during deformation or crack growth under stress.
Key Difference from UT
UT detects reflected signals from existing defects (passive).
AE detects active defect formation and propagation (dynamic).
Features
Real-time monitoring of defect development
Can locate defect sources using multi-channel sensor systems
Ideal for large pressure vessels and in-service inspection
Selection of NDT Methods for Boiler Steel Pipes
|
Defect Type |
Recommended NDT Method |
|
Volumetric defects |
Radiographic Testing |
|
Planar defects |
Ultrasonic Testing |
|
Surface cracks |
Magnetic Particle / Penetrant Testing |
|
Near-surface flaws |
Eddy Current Testing |
|
Active crack growth |
Acoustic Emission Testing |
Conclusion
Because internal defects in boiler steel pipes and pressure vessels cannot be reliably detected by visual inspection alone, nondestructive testing is essential for ensuring safety, quality, and long-term reliability.
By selecting appropriate NDT methods based on defect type, material, and service conditions, manufacturers and operators can significantly reduce failure risks and comply with international boiler and pressure vessel standards.
FAQ
Q1: Why is nondestructive testing necessary for boiler steel pipes?
A: Because internal weld defects cannot be detected visually and destructive testing is impractical.
Q2: Which NDT method is best for detecting cracks?
A: Ultrasonic testing and magnetic particle testing are most effective for crack detection.
Q3: Is radiographic testing mandatory for boiler pipes?
A: In many regulations, critical pressure-bearing welds require 100% radiographic inspection.
Q4: Can eddy current testing inspect pipe inner walls?
A: Yes, insertion-type probes are designed for internal pipe inspection.
Q5: What makes acoustic emission testing unique?
A: It detects active defect growth during actual loading conditions, not just existing flaws.
