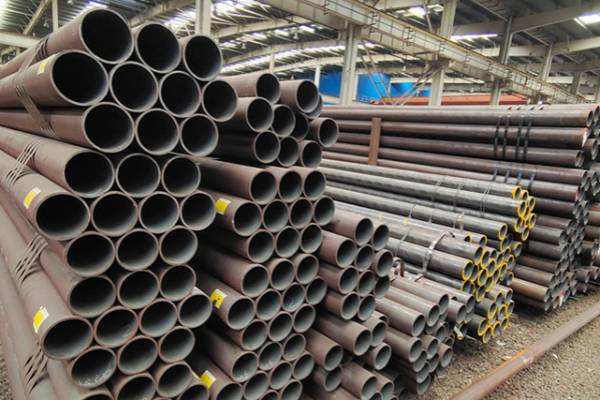

ASTM A213 is a widely recognized standard developed by the American Society for Testing and Materials (ASTM) for seamless alloy steel and stainless steel tubes. These tubes are primarily used in high-temperature and high-pressure applications such as boilers, superheaters, and heat exchangers. Across industries like power generation, petrochemical, oil refining, and industrial heat exchange systems, ASTM A213 alloy seamless steel pipes are considered a critical material standard.
Compared to conventional carbon steel tubes, ASTM A213 alloy seamless steel pipes offer superior high-temperature resistance, oxidation resistance, and creep resistance, maintaining stable mechanical properties during long-term operation under extreme conditions.
ASTM A213 Alloy Seamless Steel Tube Specifications
- Outer Diameter (OD) Range
ASTM A213 does not impose strict upper limits on tube dimensions, but commonly used industry specifications include:
6.35 mm (1/4") to 127 mm (5"). Smaller diameters are typically applied in boiler and heat exchanger systems.
- Wall Thickness (WT) Range
Minimum Wall Thickness: ~0.9 mm
Maximum Wall Thickness: Usually does not exceed 22% of the OD
Common Range: 1.0 mm to 12 mm, selected based on system pressure and temperature design requirements
- Length and Shape Options
Fixed Length Tubes
Random Length Tubes
U-Bend Tubes (for heat exchangers)
Key Characteristics of ASTM A213 Alloy Seamless Steel Tubes
1. Excellent High-Temperature Performance
Creep Resistance: Maintains dimensional stability under prolonged high-temperature stress, preventing plastic deformation in boilers and superheaters.
Oxidation Resistance: High chromium content enhances resistance to high-temperature oxidation, extending service life.
2. Superior Corrosion Resistance
Intergranular Corrosion Resistance: Low-carbon (TP304L, TP316L) and stabilized grades resist post-weld intergranular corrosion, making them ideal for welded boiler and heat exchanger assemblies.
3. Seamless Structure for High Integrity
Alloy seamless tubes have no weld joints, avoiding defects, stress concentrations, or microstructure inconsistencies present in welded pipes, resulting in higher reliability and structural integrity.
4. Outstanding Mechanical Properties
After proper alloying and heat treatment, ASTM A213 tubes exhibit high tensile strength, yield strength, and toughness, suitable for complex stress environments in industrial equipment.
5. Strict Quality Control
ASTM A213 specifies chemical composition, mechanical property limits, heat treatment, non-destructive testing (eddy current, ultrasonic, hydrostatic), and dimensional tolerances, ensuring consistently reliable product quality.
Dimensions of ASTM A213 Alloy Seamless Steel Tubes
|
DN |
NPS |
OD |
SCH10 |
SCH20 |
SCH30 |
STD |
SCH40 |
SCH60 |
XS |
SCH80 |
|
6 |
1/8 |
10.3 |
1.24 |
- |
1.45 |
1.73 |
1.73 |
- |
2.41 |
2.41 |
|
8 |
1/4 |
13.7 |
1.65 |
- |
1.85 |
2.24 |
2.24 |
- |
3.02 |
3.02 |
|
10 |
3/8 |
17.1 |
1.65 |
- |
1.85 |
2.31 |
2.31 |
- |
3.2 |
3.2 |
|
15 |
1/2 |
21.3 |
2.11 |
- |
2.41 |
2.77 |
2.77 |
- |
3.73 |
3.73 |
|
20 |
3/4 |
26.7 |
2.11 |
- |
2.41 |
2.87 |
2.87 |
- |
3.91 |
3.91 |
|
25 |
1 |
33.4 |
2.77 |
- |
2.9 |
3.38 |
3.38 |
- |
4.55 |
4.55 |
|
32 |
1 1/4 |
42.2 |
2.77 |
- |
2.97 |
3.56 |
3.56 |
- |
4.85 |
4.85 |
|
40 |
1 1/2 |
48.3 |
2.77 |
- |
3.18 |
3.68 |
3.68 |
- |
5.08 |
5.08 |
|
50 |
2 |
60.3 |
2.77 |
- |
3.18 |
3.91 |
3.91 |
- |
5.54 |
5.54 |
|
65 |
2 1/2 |
73 |
3.05 |
- |
4.78 |
5.16 |
5.16 |
- |
7.01 |
7.01 |
|
80 |
3 |
88.9 |
3.05 |
- |
4.78 |
5.49 |
5.49 |
- |
7.62 |
7.62 |
|
90 |
31/2 |
101.6 |
3.05 |
- |
4.78 |
5.74 |
5.74 |
- |
8.08 |
8.08 |
|
100 |
4 |
114.37 |
3.05 |
- |
4.78 |
6.02 |
6.02 |
- |
8.56 |
8.56 |
Conclusion
ASTM A213 alloy seamless steel tubes are essential for high-temperature and high-pressure applications where structural integrity, long-term performance, and corrosion resistance are critical. Their seamless construction, superior mechanical properties, and adherence to stringent ASTM standards make them the preferred choice for boilers, superheaters, and industrial heat exchangers worldwide.
Understanding the specifications and properties of ASTM A213 tubes helps engineers, project managers, and procurement professionals select the right tube size, wall thickness, and material grade for reliable and efficient system design.
FAQ:
Q1: What industries commonly use ASTM A213 alloy seamless steel tubes?
Power plants, petrochemical facilities, oil refineries, and industrial heat exchanger systems.
Q2: Why choose seamless ASTM A213 tubes over welded tubes?
Seamless tubes eliminate weld defects, stress concentrations, and microstructure inconsistencies, offering higher reliability under high temperature and pressure.
Q3: What is the typical outer diameter range for ASTM A213 boiler and heat exchanger tubes?
From 6.35 mm (1/4") to 127 mm (5"), with smaller sizes preferred for heat exchangers.
